Product description

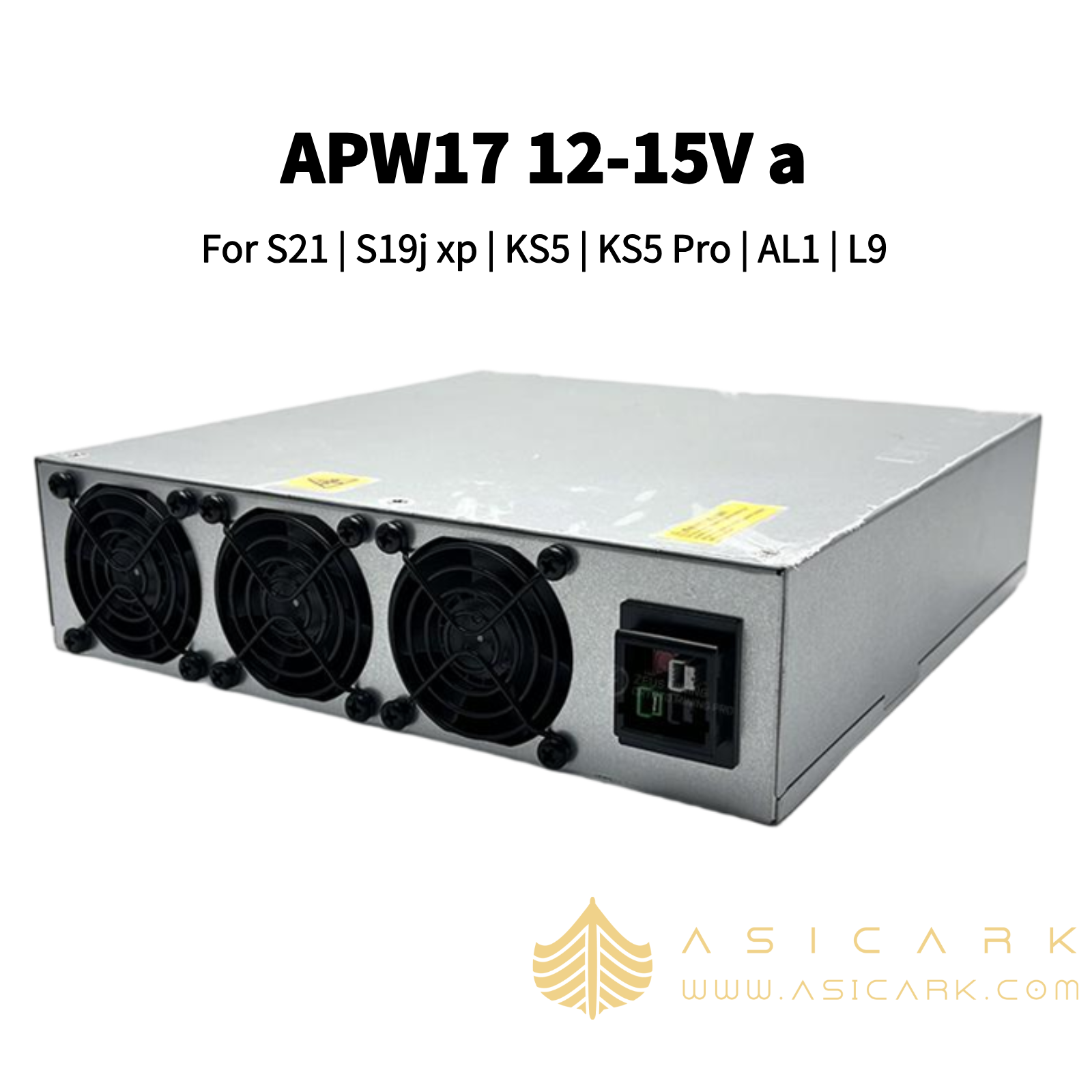

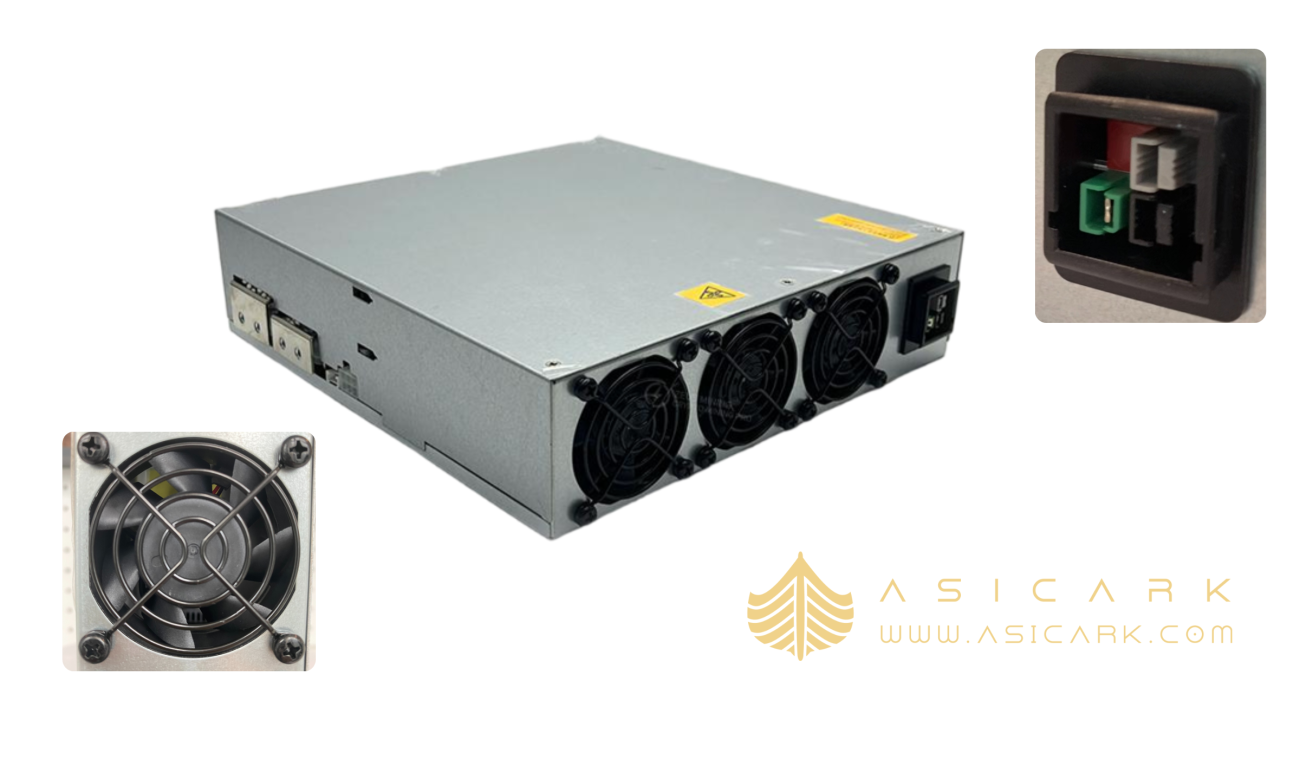

Antminer APW171215a APW171215c PSU
New Original APW171215a Version Switching Power Supply, Designed for Antminer S21/S19j XP/ KS5/KS5 PRO/AL1/ AL1 PRO/L9.
New Original APW171215c Version Switching Power Supply, Designed for Antminer S21+/S21 Pro/S21 XP.
The APW17 series PSU utilizes a proprietary 4-pin PCIe power port, designed to work exclusively with a matching C20-to-P13 power cord for safe and proper operation of the miner.
APW171215a 12-15V EMC | ||
OUT1 | DC Voltage | 12V-15V |
Rated Current(220V Input) | 267v | |
Ripple & Noise | <1% | |
Line Regulation | <1% | |
Load Regulation | <1% | |
Setup Time | <14S | |
Short Circuit Protection | >10ms | |
OUT2 | DC Voltage | 12.3V |
Rated Current(220V Input) | 18A | |
Ripple & Noise | <1% | |
Voltage Accuracy | 12.2V-12.4V | |
Line Regulation | <1% | |
Load Regulation | <1% | |
Setup Time | <10s | |
Short Circuit Protection | >10ms | |
Input | Voltage Range | 220-277V AC |
Frequency Range | 50/60HZ | |
Power Factor | >0.99(full load) | |
Leakage Current | <4mA(220V 50HZ) | |
Protection | Input low-voltage protection value | 185-195V AC |
Output Short Circuit | Yes | |
Overheat Protection | Yes | |
Over-current Output | 280A-402A(protection value varies under different voltage) | |
Environment | Operating Temperature | -20-40℃ |
Operating Humidity | 20%-90%RH(non-condensing) | |
Altitude | <2000m | |
Structure | Dimensions | 254.6×251.6x63mm |
Net Weight | 3.9Kg | |
Cooling System | Forced-air cooling | |
Noise | 45dB | |
